Product Specifications/Features

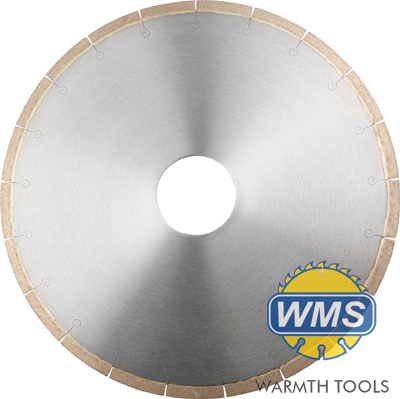

HIGH-FREQUENCY WELDED,
specially for cutting ceramic,porclain,tiles

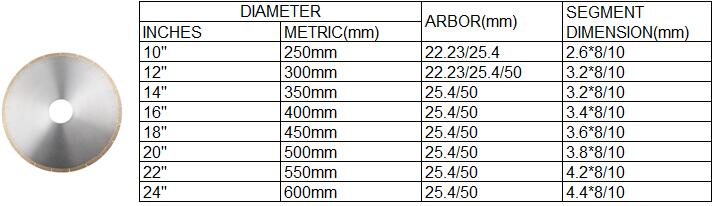

Diameter Segment Dimension
L/W/H Core Thickness Segment Number Suitable for

250 40/2.5/7/8/10 1.8/2.0 18
300 40/3.0/3.2/7/8/10 1.8/2.2/2.4 21
350 40/3.2/3.4/7/10/15 1.8/2.2/2.4 24
400 40-4.0-10/15 2.2/2.6/2.8 28
450 40-4.0-10/15 2.5/2.8/3.3 32
500 40-4.2-10/15 3.0/3.3 36
550 40-4.2-10/15 2.8/3.5 38
600 40-4.6/4.2-10/15 2.8/3.5 42
Other specification can be ordered by customer
